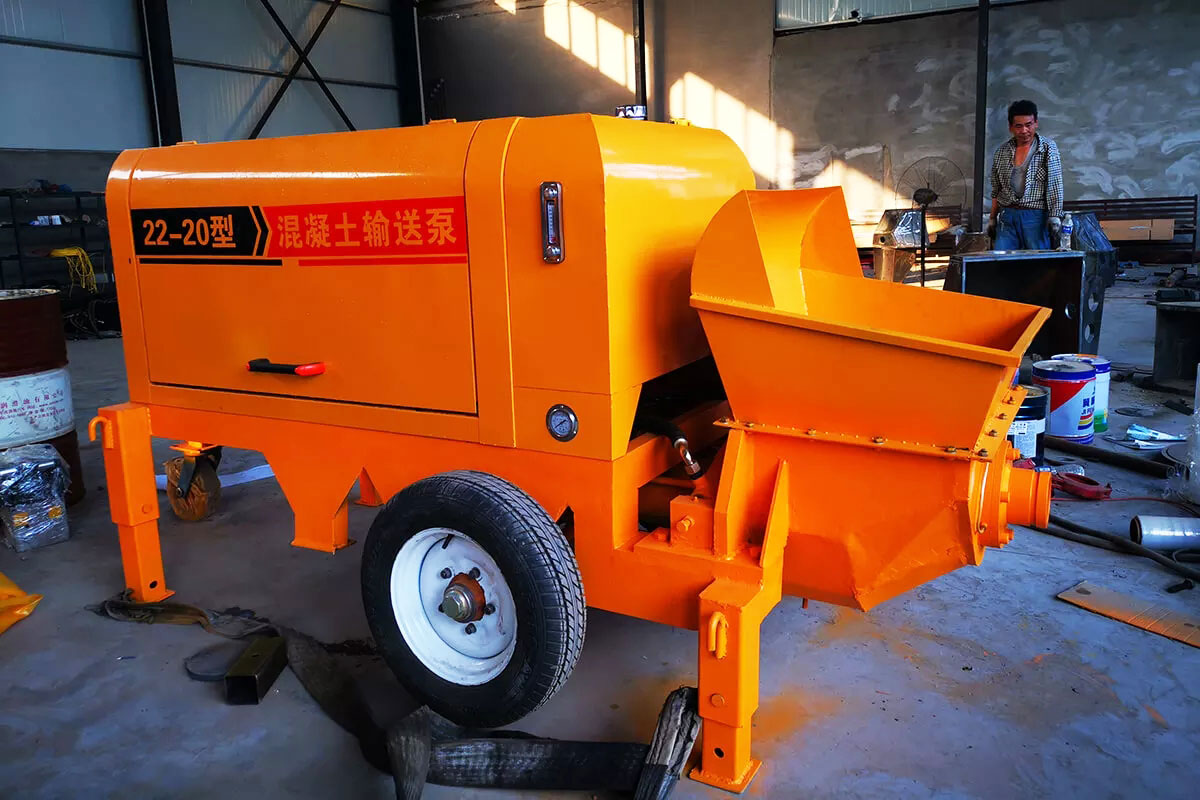

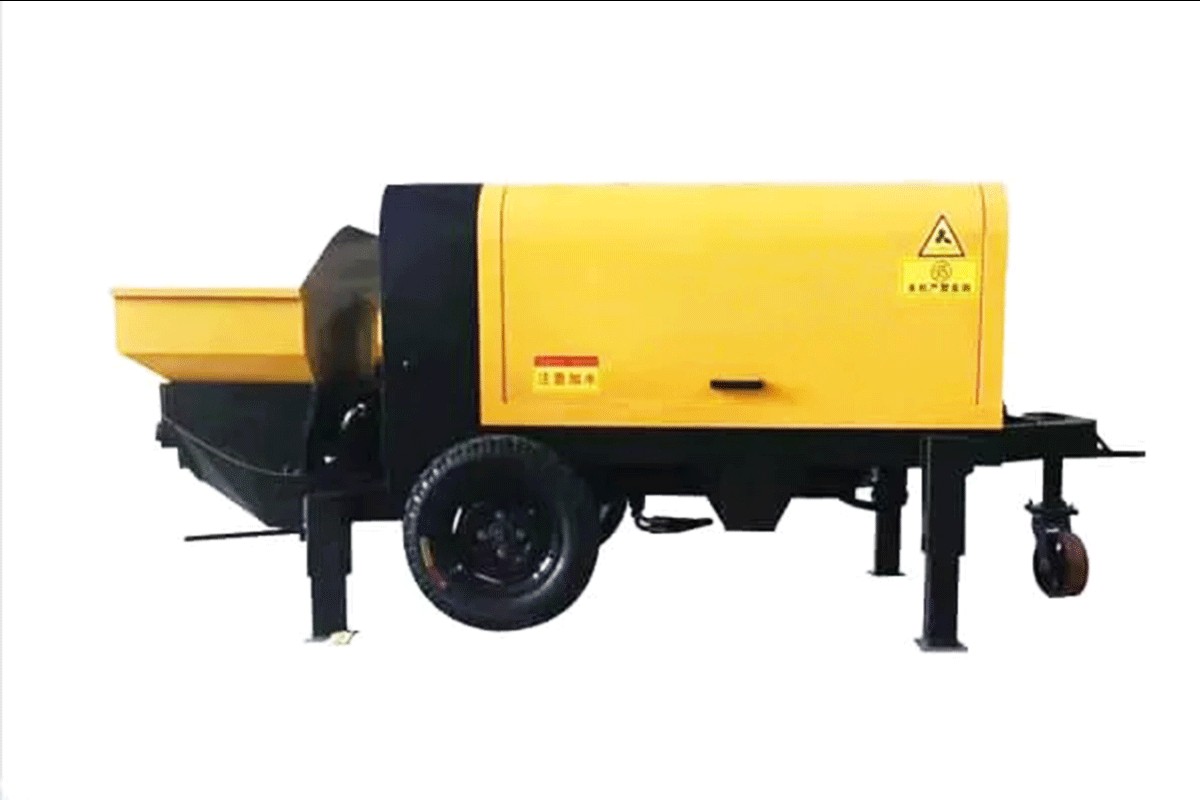

HW20-22 Concrete Pump

Factory Direct
Training on Arrival
One-year warranty
Rated Power: 22Kw
Aggregate size: 20mm
Output: 12m³/h
Product Detail

1. Advanced s-tube valve is adopted to meet the delivery of concrete;

2. The glasses plate and cutting ing are made of high hardness and wear resisting allay material, with longer service life;

3. Import main oil pump with high output pressure can meet high-rise buildings and distance transportation requirements

4. The hydraulic oil is cooled by air cooling system, which has good cooling effect and is easy to use;


Model

HW20-22

Power

22kw

Voltage

380V

Vertical delivery distance

50m

Horizontal delivery distance

80m

Output

12m3/h

Max.Aggregate size

20mm

Outlet diameter

120mm

Cylinder stroke

650mm

Pipe diameter

100mm

Dimension

2100*780*1200mm

Weight

900kg

Online Inquiry

Hengwang Group aims to provide you with complete engineering equipment solutions to reduce your costs and increase your profits.

Fill in the form to get the latest product parameters and the lowest price.

Please fill in the form below to contact us

  • All products are guaranteed for 12 months!
