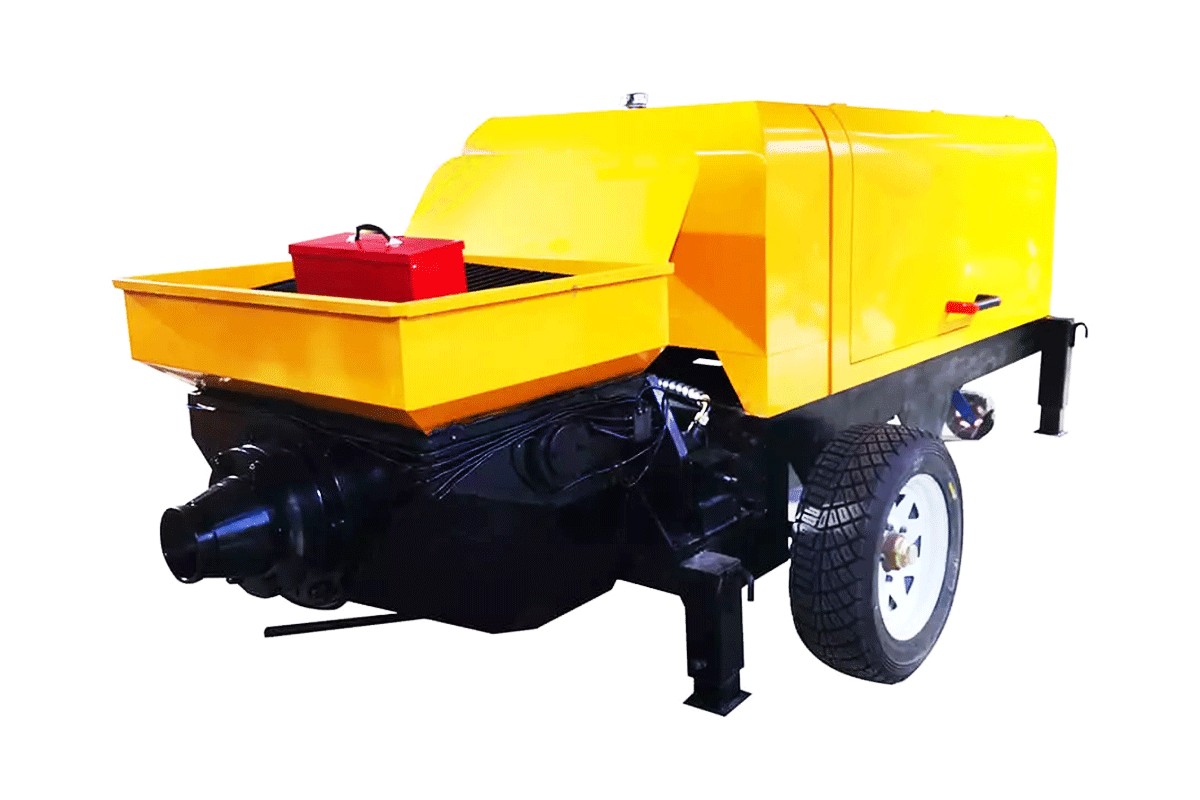

HW20-47 Concrete Pump

Factory Direct
Training on Arrival
One-year warranty
Rated Power: 47Kw
Aggregate Size: 20mm
Output: 35m³/h
Product Detail

1. HW20-47 concrete pump is specially designed for floor heating construction.

2. This concrete conveying equipment suitable for concrete mixing in floor heating engineering large area and high efficiency construction with solidified soil filling layer or mortar filling.

3. Can be used in concrete or mortar used in construction projects, tunnels, mines, etc conveyor.

4. After installing the jet accessories, it can also be used as a shotcrete pump for concrete Spraying,mortar, refractory and green soil spray and sprinkle.


Model

HW20-47

Power

47kw

Voltage

380V

Vertical delivery distance

180m

Horizontal delivery distance

300m

Output

35m3/h

Max.Aggregate size

20mm

Outlet diameter

150mm

Cylinder stroke

1500mm

Pipe diameter

125mm

Dimension

4100*1500*1600mm

Weight

2000kg
