1. Equipped with a standard environmental protection National 5 engine, intercooled supercharged, and an automatic air-cut brake system, ensuring high and low-speed driving capabilities.
2. Features hydraulic double-section outriggers with an extra-large span for enhanced safety and a broader working range. The outrigger cylinder is precisely ejected with minimal clearance.
3. Improved stability and safety in slewing action by enhancing the slewing support of the external gear turntable.
4. The slewing support, crafted through integral forging, tooth surface quenching, and raceway precision grinding, ensures a longer service life and enhances overall stability during crane operations.

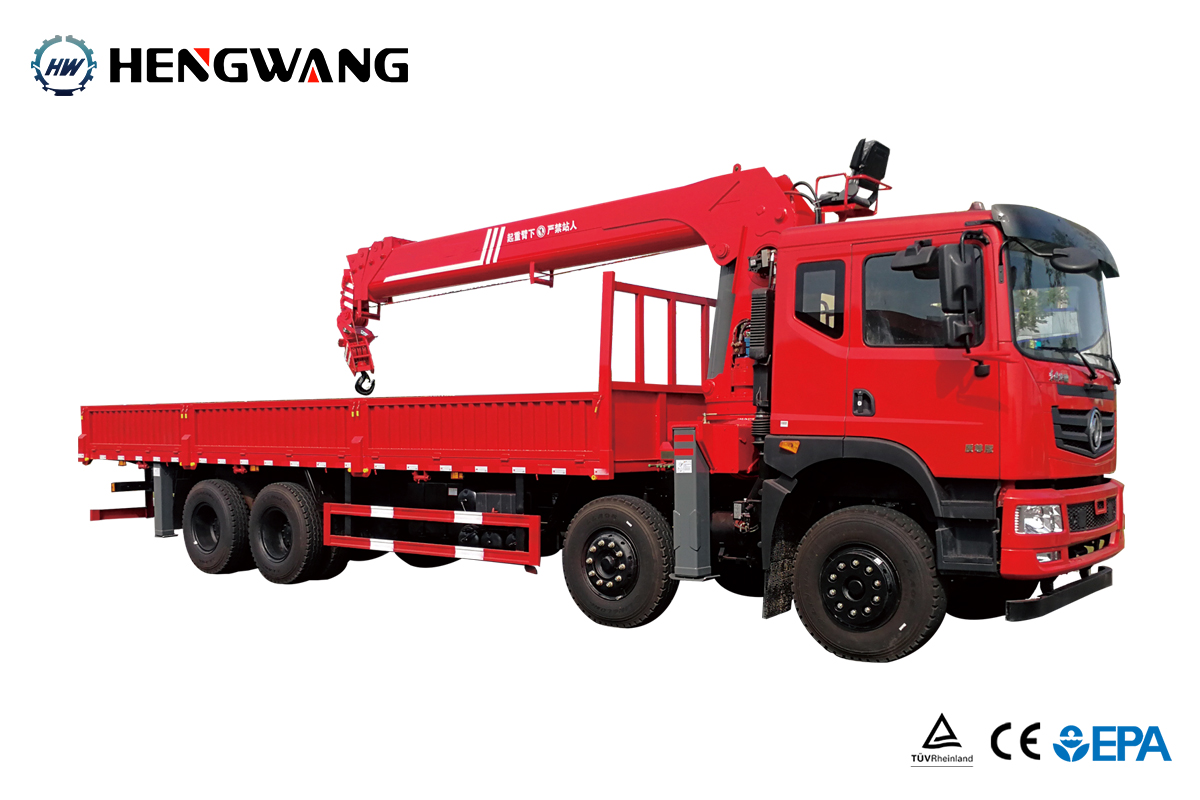

| Chassis | Dongfeng T5 8X4 |
| Drive type | 8X4 |
| Engine | Yuchai 290hp |
| Gearbox | Nine gear with high low speed and synchronous |
| Front axle (t) | 5.5*2 |
| Rear axle (t) | 10*2 |
| Tire model | 11.00R20Wire Bead |
| Wheel base (mm) | 2150+4400+1350 |
| Crane boom type | Straight boom |
| Total weight (kg) | 31000 |
| Work height (m) | 20.5 |
| Number of outrigger | 4 pieces full |
| Outrigger type | H type |
| Winch | 14t hydraulic Winch |
| Cargo tank dimensions (mm) | 8400 X 2450 X 550 |
| Overall dimensions (mm) | 12000 X 2550X 3950 |
