1. The slewing center is equipped with a touch-type electric disc, which can rotate 360 degrees infinitely.
2. Boom telescopic limit marking and automatic stop report, limit switch three insurance.

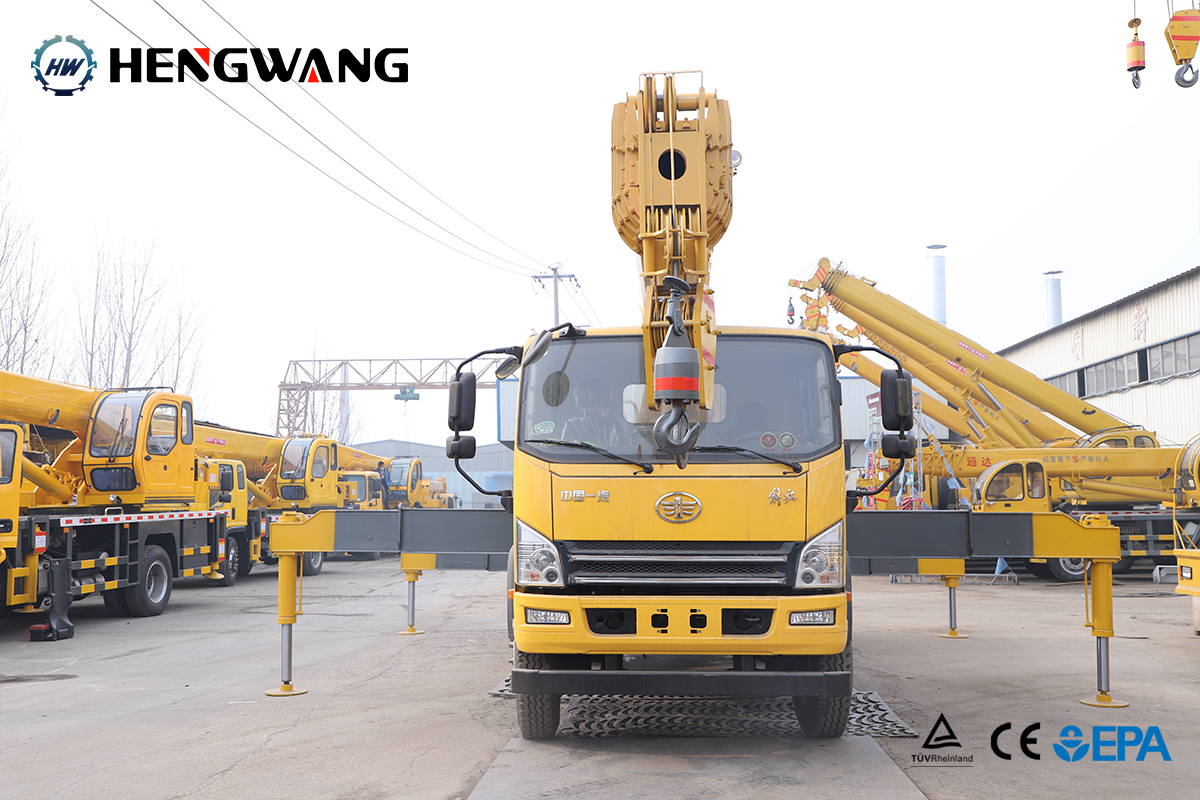

3. Hydraulic double-section outriggers, extra-large outrigger span, larger working range and safer. The outrigger cylinder is ejected with small clearance.
4. U-shaped section of the arm body, anti-twist design, more uniform force, better telescopic guidance, more stable telescopic
| Model | HWYQJF12T |
| Chassis models | FAW Jiefang |
| Max. loading capacity | 12000kg |
| Crane jib U type | 7.3m*5 section (rope inside) |
| Max. lifting height | 31.5m |
| Lifting speed | Double pumps combined |
| Swing speed | 0-3rap |
| Engine model | Weichai |
| Power | 140kw |
| Tire | 900R20 radial tire |
| Reducer model | Planetary reducer |
| Pivoting support | 1.5m arm rope inside |
| Steering machanism | Hydraulic Power Steering |
Hengwang Group aims to provide you with complete engineering equipment solutions to reduce your costs and increase your profits.
Fill in the form to get the latest product parameters and the lowest price.
