Specifications | |
Rated operating capacity (kg) | 1050 |
Tipping load (kg) | 2100 |
Bucket capacity (m3) | 0.55-0.6 |
Operating weight (kg) | 3500 |
Max. travel speed (km/h) | 12 |
Hydraulic pump flow (L/min) | 75/125 |
Fuel tank capacity (L) | 60/90 |
Tires | 12/16.5 NHS |
Overall dimensions (mm) | 3560×1900×2050 |
Dimensions | |
Height at maximum extension (mm) | 4070 |
Height to bucket hinge pin (mm) | 3150 |
Width with bucket (mm) | 1900 |
Track width (mm) | 1500 |
Wheelbase (mm) | 1185 |
Ground clearance (mm) | 260 |
Dump angle | 40° |
Dumping height (mm) | 2450 |
Maximum reach (mm) | 710 |
Rollback at ground | 26° |
Angle of departure | 20° |
Engine | |
Maker/Model | xinchai 498T |
Net power | 75hp/2500rpm |
Type | 4 Cylinder in-line, Water cooled, 4 stroke, Diesel engine |

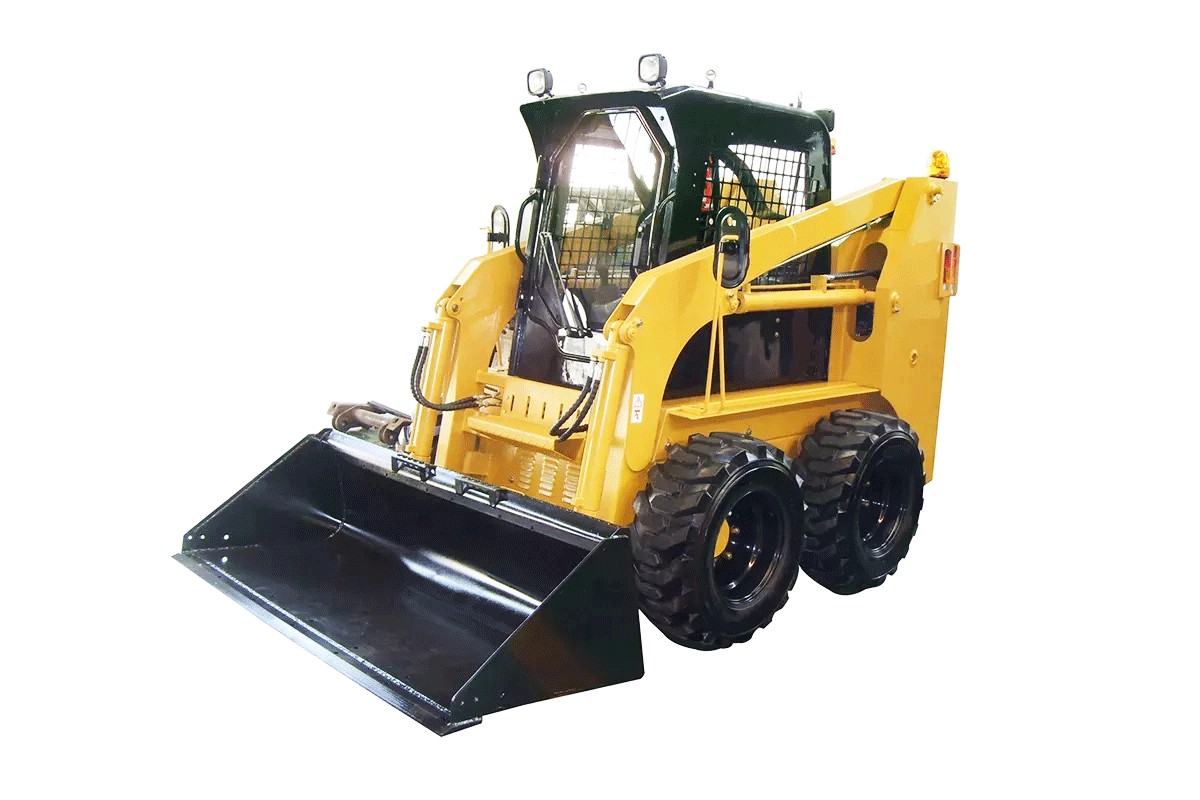

The HW-JC75 Skid Steer Loader stands as a testament to versatility and efficiency in equipment design, catering to a multitude of applications. Its distinctive wheel-type chassis and advanced differential steering system provide unparalleled maneuverability and control. Whether addressed as a skid steer loader, multi-purpose vehicle, or multi-purpose engineering machine, it excels in navigating small job sites, negotiating uneven terrains, and adapting swiftly to changing tasks.
This high-performance machine finds its stride in diverse tasks, showcasing excellence in infrastructure construction, industrial operations, dock handling, urban streets, residential areas, farms, barns, airport runways, and beyond. Its adaptability extends to serving as exceptional auxiliary equipment for expansive construction projects.
Inquire now to discover the best price for the HW-JC75 Skid Steer Loader, an embodiment of versatility and efficiency tailored to meet your specific operational needs!
