Parameter

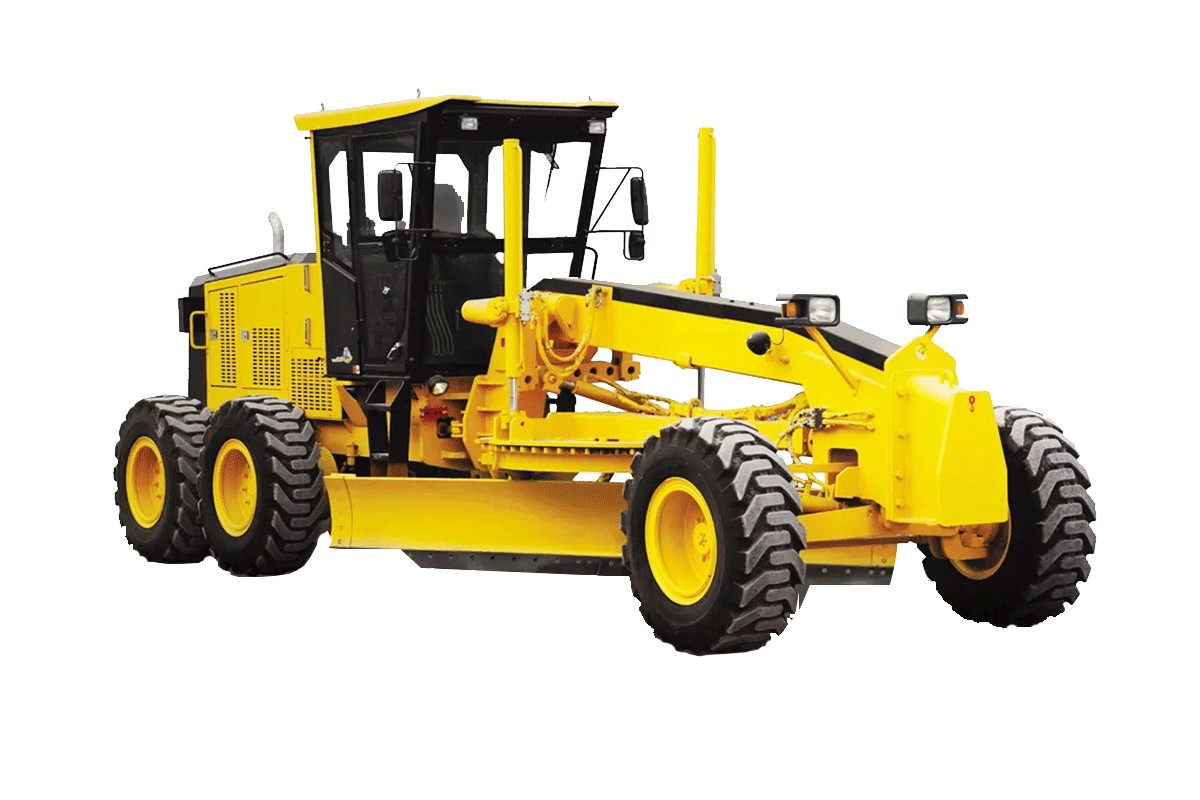

| Product name | SG16-3 |
| Performance parameters | |
| Operating weight of machine (kg) | 15100 |
| Wheelbase (mm) | 6260 |
| Wheel tread (mm) | 2155 |
| Minimum ground clearance (mm) | 430 |
| Steering angle of front wheels (°) | ±45 |
| Articulated steering angle (°) | ±25 |
| Maximum traction force (kN) | 79.3 (f=0.75) |
| Turning radius (mm) | 7,800 (Outer side of front wheel) |
| Maximum gradeability (°) | 20 |
| Width of shovel blade (mm) | 3660 |
| Height of shovel blade (mm) | 635 |
| Blade slewing angle (º) | 360 |
| Blade cutting angle (º) | 37-83 |
| Maximum digging depth of blade (mm) | 500 |
| Length (mm) | 8726 |
| Width (mm) | 2600 |
| Heigh (mm) | 3400 |
| Engine | |
| Engine model | 6BTAA5.9-C160 |
| Emission | China-II |
| Type | Mechanical direct injection |
| Rated power/rated speed (kw/rpm) | 118kW/2200 |
| Drive system | |
| Torque converter | Single-stage single-phase three-element |
| Transmission | Countershaft power shift |
| Gears | Six forward and three reverse |
Working Adaptability
● Equipped with a power shift transmission that features 6 forward gears and 3 reverse gears, which are electro-hydraulically controlled. This transmission allows for the selection of the optimal gear based on the working road condition, ensuring the best match between traveling and operation.
● The drive axle is an integral three-segment design, internally built with an imported no-spin automatic limited slip differential. This design ensures a stable and reliable drive, providing excellent performance.
● The balance box allows for a 15° angular swing in the vertical direction, while the heavy-duty roller chain drive enhances the machine's terrain adaptability. It can effectively handle various road conditions, providing stable power output and strong drive force.
