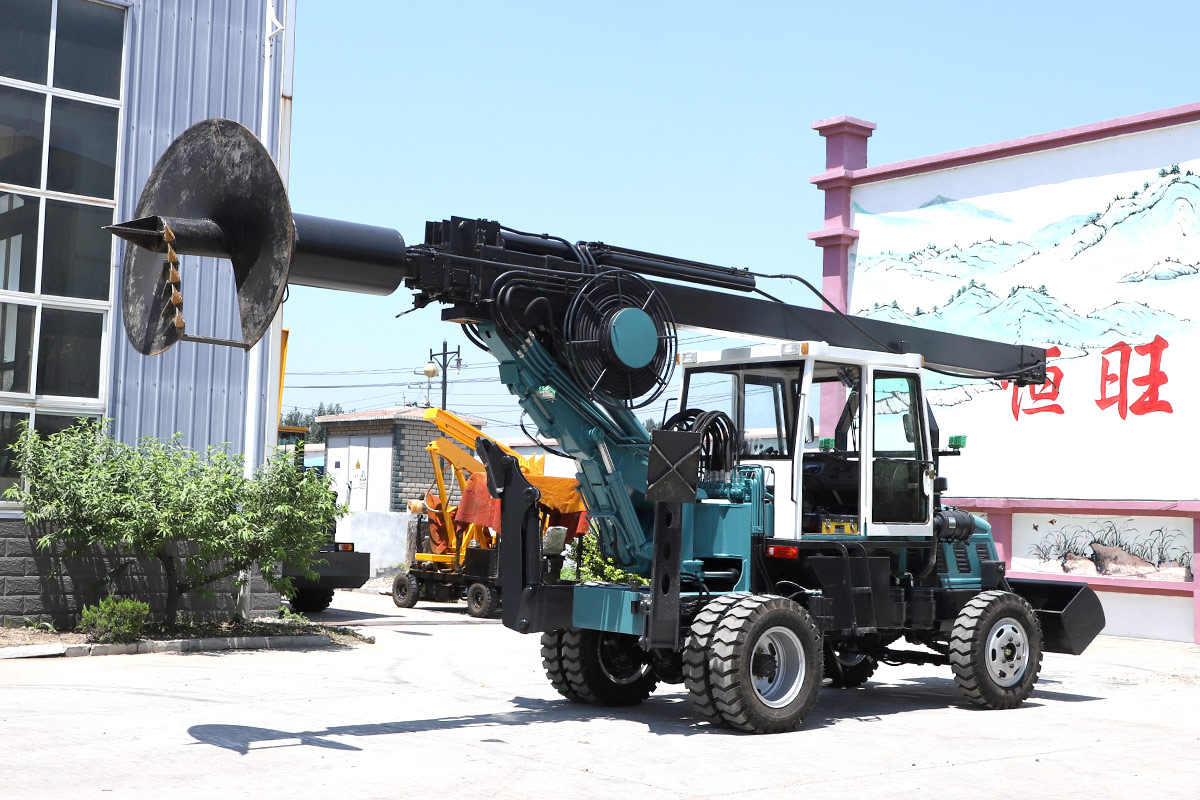

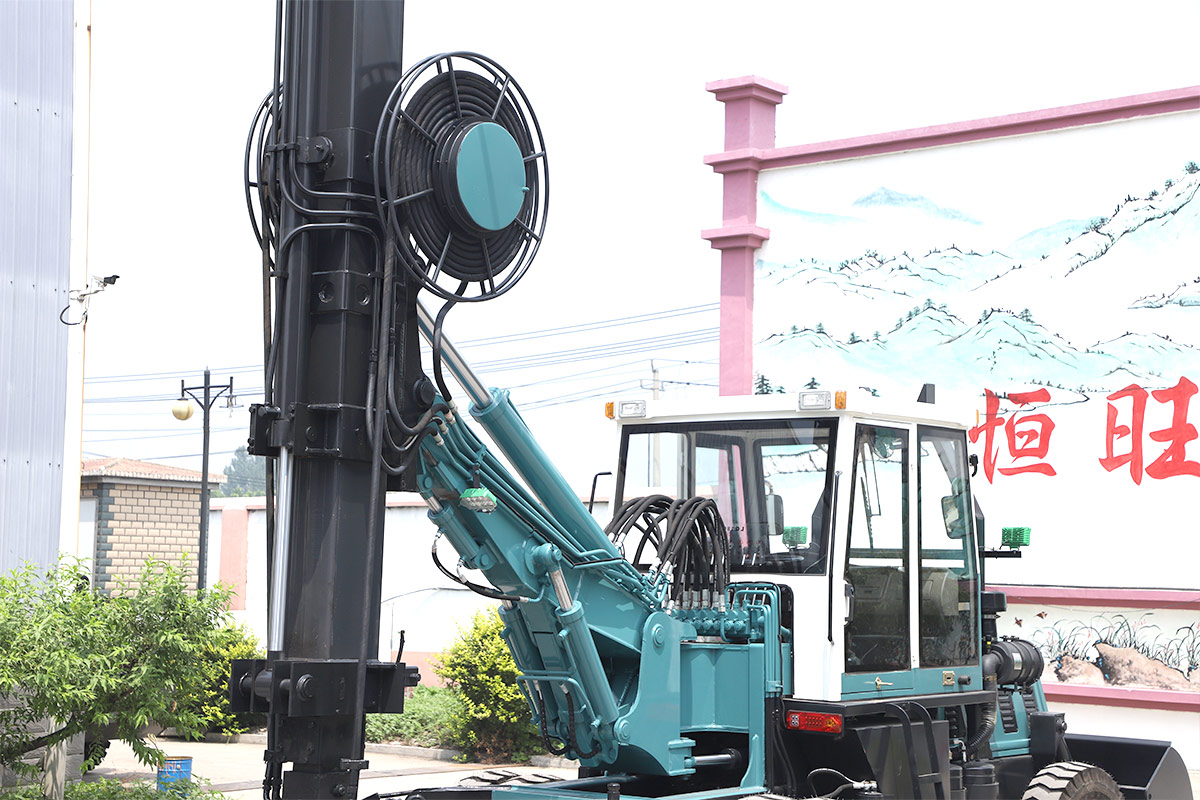

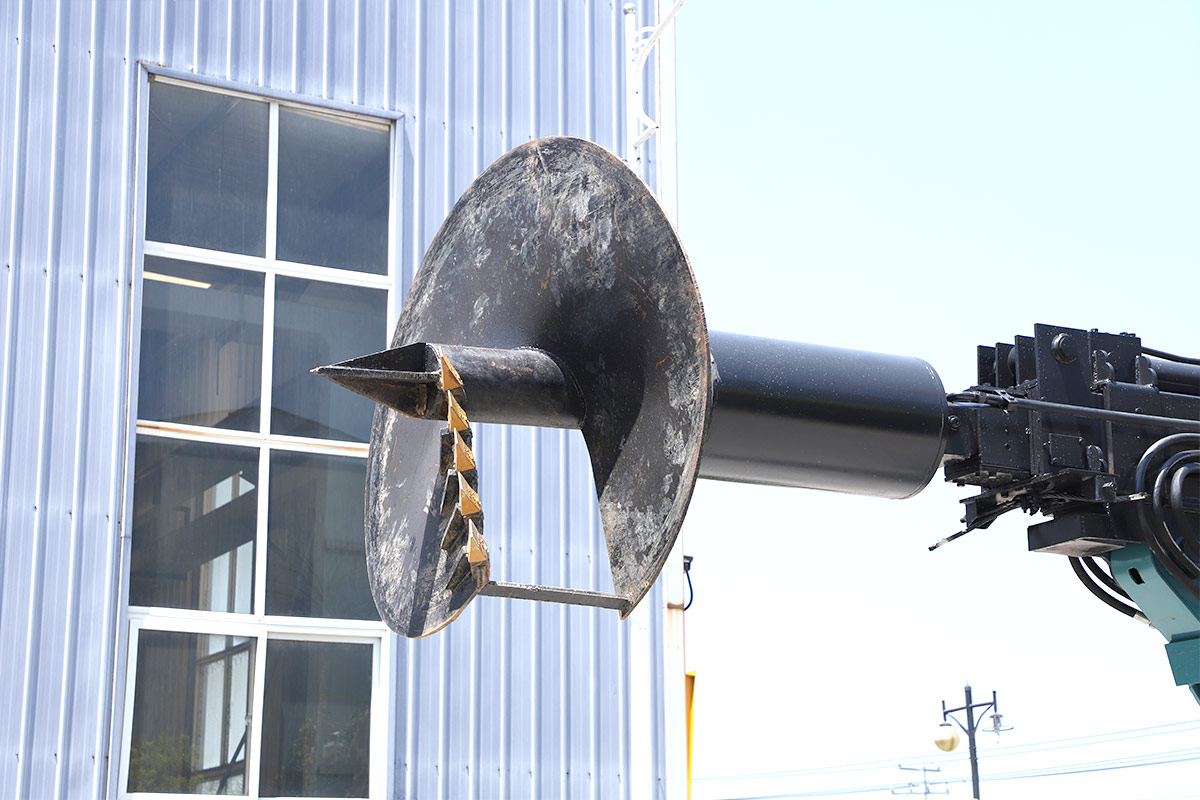

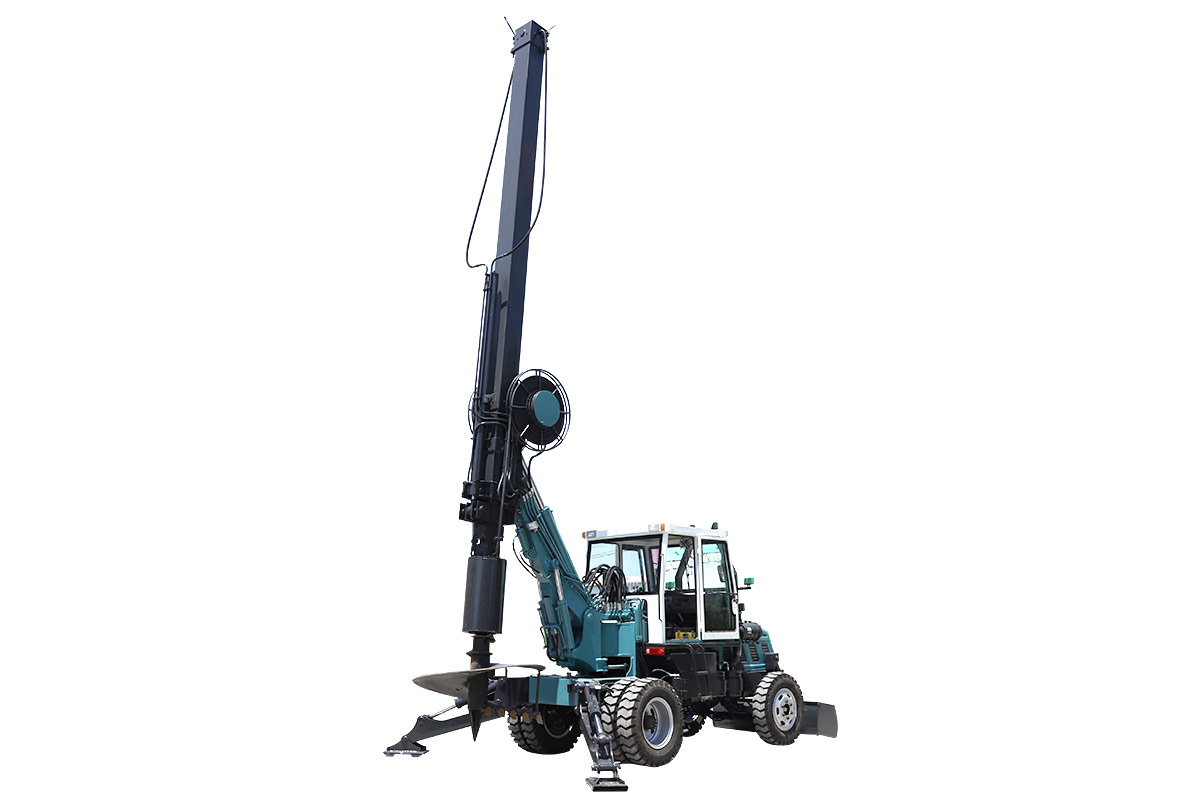

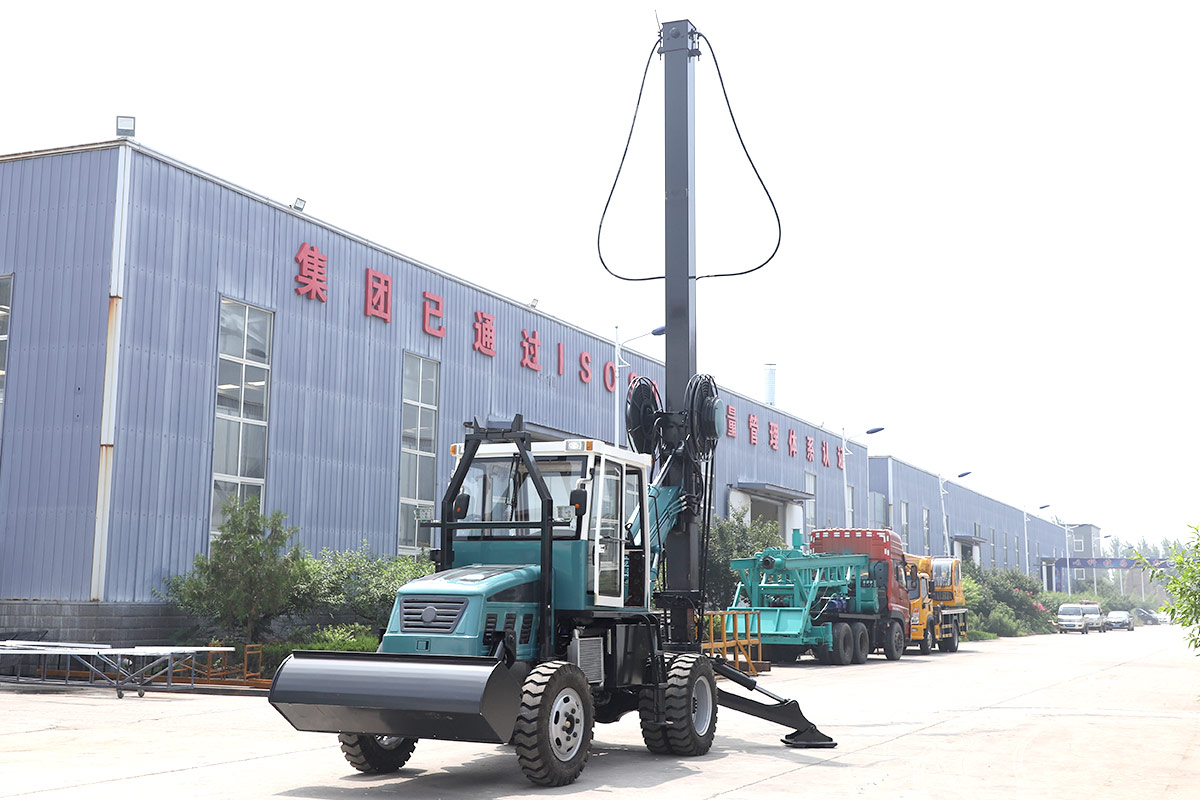

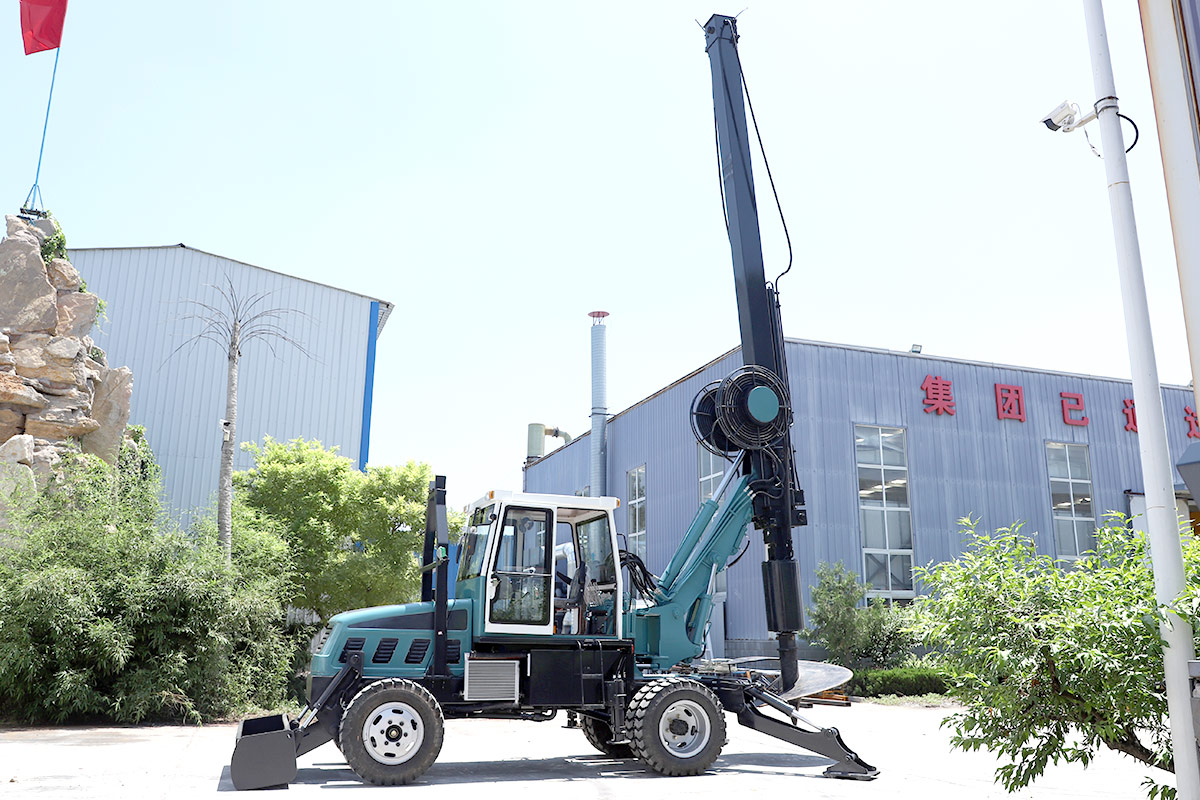

Rotary drilling rig is a kind of construction machine suitable for hole formation in building foundation engineering.
Mainly suitable for sandy soil, cohesive soil, silty soil and other soil construction, widely used in cast-in-situ piles, continuous walls, foundation reinforcement and other ground foundation construction.
The output torque is 120 ~ 400kN • m, the maximum hole diameter can reach 1.5 ~ 4m, and the maximum hole depth is 60 ~ 90m, which can meet the requirements of various large foundation constructions.
| Model | HWDR150D |
| Dimensions | 8700mm*2300mm*3200mm |
| Wheelbase | 3250mm |
| Wheel-track | 1600mm/Front, 1260mm/Rear |
| Vehicle weight | 9000 (KG) |
| Engine power | 120-150HP |
| Piling depth | 1-15 (m) |
| Drilling diameter | 400-2200 (mm) |
| Swing angle | 180° |
| Walking speed | 50 (km/h) |
| Working pressure of hydraulic system | 20-30 (Mpa) |
| Hydraulic system displacement | 80ml/r |
Hengwang Group aims to provide you with complete engineering equipment solutions to reduce your costs and increase your profits.
Fill in the form to get the latest product parameters and the lowest price.
